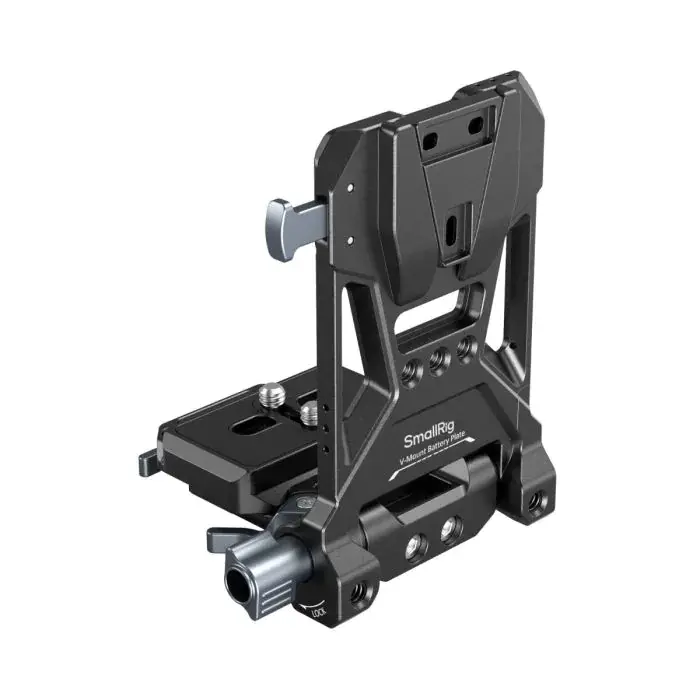

An L-shaped V-mount battery plate that stretches to fit your camera and folds away when you don't need it.
The SmallRig 4505B mounts a V-mount battery to your rig with a stretchable baseplate (up to 36.5mm), a toggle lock for tool-free adjustment, and a built-in Arca-type clamp. It rotates 180° so you can tuck it away for storage or swing it back for full access to your camera's flip screen — all without removing the battery. It's compact at roughly 113.5×30mm and 199g, and works with most mirrorless and DSLR bodies under 111mm thick.
Who it's for: run-and-gun shooters powering a camera rig off a V-mount battery who want a compact, adjustable mounting solution.
Why buy from Skyorbits: genuine SmallRig, our warranty handling, VAT-inclusive OMR pricing, installments available, and fast delivery across Oman.
Key specs (verified): L-shaped V-mount battery plate · stretchable baseplate, up to 36.5mm · 1/4"-20 and 3/8"-16 threads · built-in Arca-type clamp · 180° rotation with pivot damping · approx. 113.5×30mm, 199g.
قاعدة تركيب بطارية V-mount على شكل L، تتمدّد على قد كاميرتك وتنطوي وقت ما تحتاجها.
قاعدة SmallRig 4505B تثبّت بطارية V-mount على الريج بقاعدة قابلة للتمدّد (حتى 36.5 مم)، مع قفل سريع بدون أدوات، وملزمة نوع Arca مدمجة. تدور 180° عشان تطويها للتخزين أو ترجعها للخلف عشان تفتح شاشة الكاميرا القابلة للطي — كل هذا بدون ما تفك البطارية. حجمها صغير تقريبًا 113.5×30 مم ووزنها 199 جم، وتناسب أغلب كاميرات الميرورليس وDSLR بسمك أقل من 111 مم.
لمن؟ لمصوّري التصوير المتحرّك اللي يشغّلون ريج الكاميرا من بطارية V-mount ويبون حل تركيب مضغوط وقابل للتعديل.
ليش من أفلاك السماء؟ أصلية من SmallRig، مع متابعتنا للضمان، وسعر شامل الضريبة بالريال العُماني، وتقسيط متوفر، وتوصيل سريع لكل عُمان.
أهم المواصفات (موثّقة): قاعدة بطارية V-mount على شكل L · قاعدة قابلة للتمدّد حتى 36.5 مم · فتحات 1/4"-20 و3/8"-16 · ملزمة Arca مدمجة · دوران 180° · تقريبًا 113.5×30 مم و199 جم.
· Versatile and Compact Design: Adopts L-shaped design, which integrates V-mount battery plate, stretchable rod, 1/4"-20 and 3/8"-16 threads to realize quick installation and adjustment of camera and battery. The built-in mount clamp for Arca supports any SmallRig cages with QR plate for Arca. Folding and lightweight design, only 113.5 mm x 30 mm, 199g, easy to store and carry round.
· Stretchable Baseplate: The baseplate of this V-mount battery plate is stretchable, and the maximum stretchable distance is 36.5 mm / 1.43 inch, which meets the needs of cameras of different sizes and improves the compatibility. Locking and releasing the rod is realized by a toggle lock, which is fast and time-saving without the needs of tools.
· Widely Compatibility: Versatile and universal, it is suitable for most camera models on the market, for Mirrorless / DSLR cameras less than 111mm thick, like for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7C / FX3 / FX30, for Canon EOS R5C / R5 / R6 / R6 Mark II / R7 / R10 / R / RP , for Panasonic LUMIX S1H / S1R / S1 / S5 / S5 II / GH6 / GH5.
· Smart Rotatable Design: Can be rotated and adjusted by 180°. Adjust forward for convenient storage, adjust backward for enough space to open the camera flip screen. This rotating design does not require you to remove the battery first, which effectively saves time. And it also features pivot damping to prevent equipment from falling.
· Expand Your Creativity: The Built-in 1/4"-20 and 3/8"-16 threaded holes on the bottom enable to mount the quick release plate you need, such as for Arca-Swiss and for Manfrotto etc.
Specifications
| Brand | SmallRig |
| Power Type | V-Mount |
