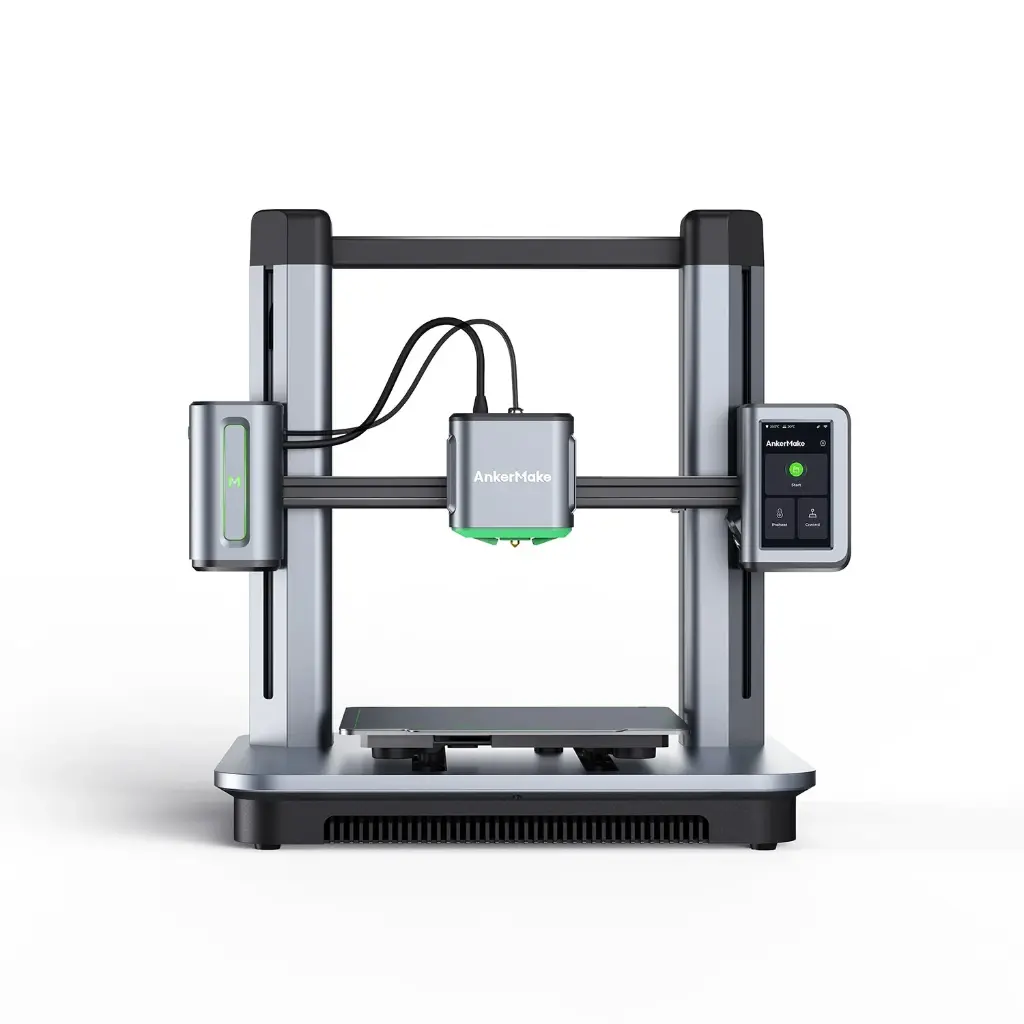

Anker AnkerMake M5 3D Printer V81112C1

Cut Printing Time by 80%

PowerBoost™ 2.0 achieves smooth power output and increases power release by 30% compared to PowerBoost™ 1.0, allowing for double the printing speed and acceleration of M5, without sacrificing printing quality.

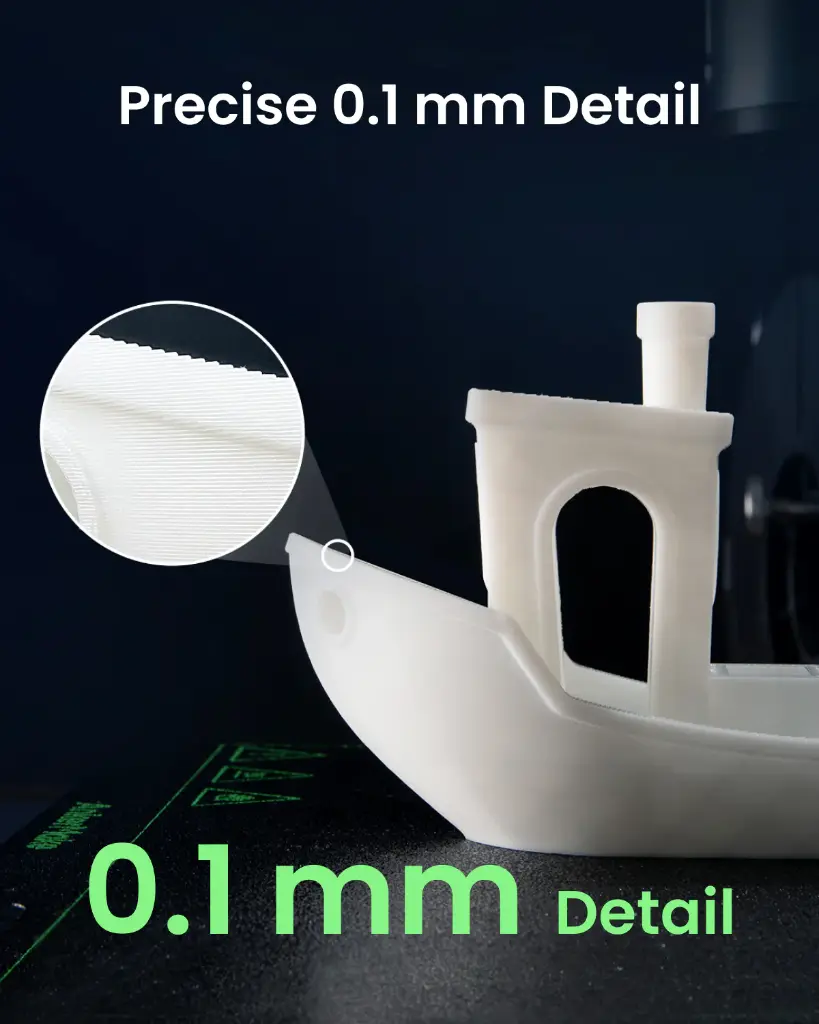

Precise 0.1 mm Detail

Achieve precision—even at 5X speed—thanks to the new ultra-direct extruder and integrated die-cast aluminum alloy structure.

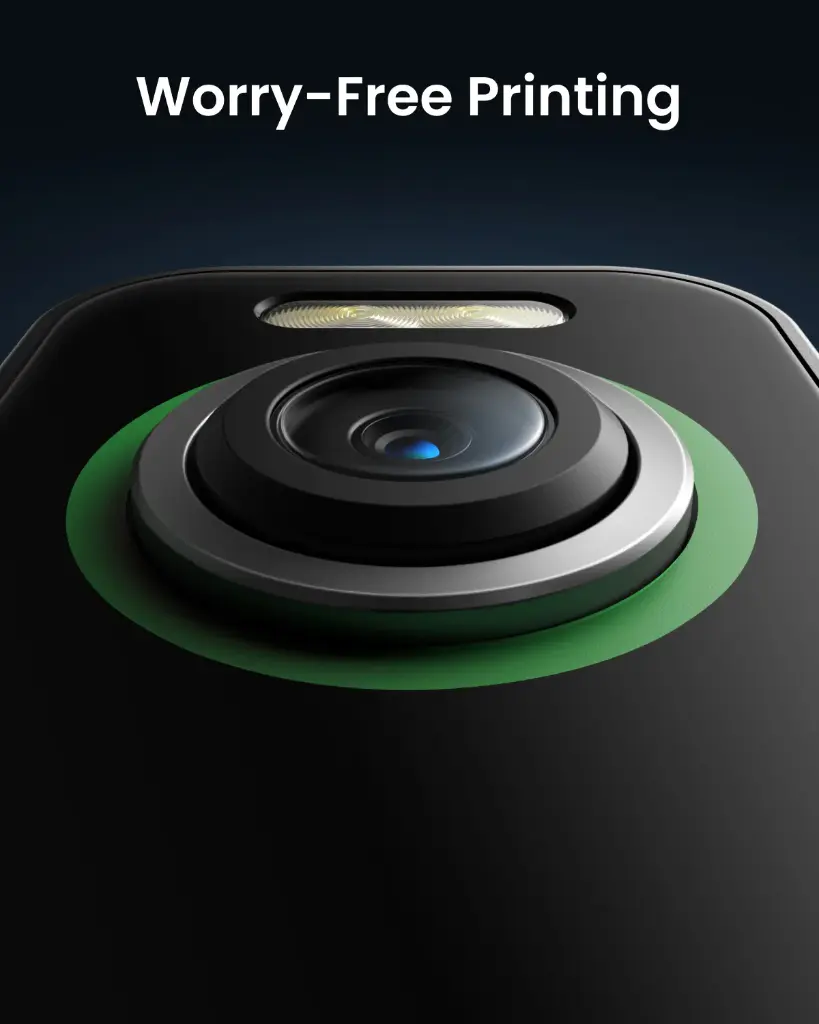

Keep Your Print On Track

M5 calculates a printing plan and uses extra processing power and an integrated intelligent camera to stick to it—keeping your model matching your design.

Start Prints Anytime, Anywhere

Whether you're in the lab or across town, start and manage prints anytime via the AnkerMake App, Slicer, or Amazon Alexa.

Printing So Smart, It's Easy

No matter your experience, the AnkerMake Slicer and AnkerMake App give you complete control and guidance with easy slicing and parameter changes.

Expand Creativity with Color

Let your imagination decide the limits with AnkerMake V6 Color Engine. The M5 add-on allows you to add color to your models.

Features:

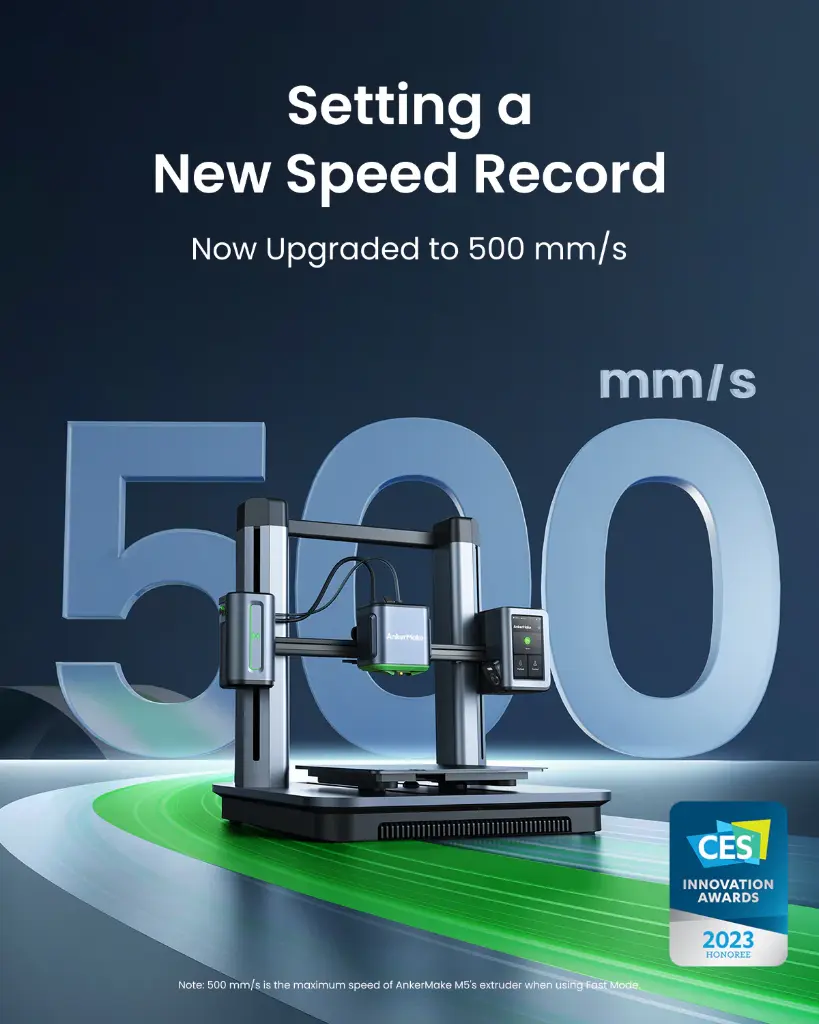

• Setting a New Speed Record, Now Upgraded to 500 mm/s
• Precise 0.1 mm Detail
• Built-In AI Camera Monitoring
• Auto-Created Timelapses
• Hub Connects Multiple Devices
• 7×7 Auto-Leveling
• Easy Assembly
• Aluminum Alloy Structure
• Print Volume 235×235×250 mm³

Specifications:

Printing Parameters

• Print Volume (L×W×H): 235×235×250 mm³
• Fast Mode Speed: 500 mm/s
• Fast Mode Acceleration: 5,000 mm/s²
• Normal Mode Speed: 250 mm/s
• Normal Mode Acceleration: 2,500 mm/s²
• Max Extruder Speed: 500 mm/s
• Operation Speed: 50-250mm/s
• Print Precision: ±0.1 mm
• Nozzle Diameter: 0.4 mm (Compatible with 0.2/0.6/0.8 mm)
• Filament Diameter: 1.75 mm
• Print Materials: PLA/PETG/TPU/ABS
• Extruder Temperature: Maximum 500°F (260℃)
• Heating Plate Temperature: Maximum 212°F (100℃)

Printing Features

• Extruder: Ultra Direct Extruder
• Part Cooling: Double Cooling Fan
• Extruding Gear: Double Hardened Steel
• Heated Plate: PEI Soft Magnetic Steel
• Auto-Leveling: Auto 49 (7×7) Points
• Filament Sensor: Broken Material Detection
• Resume Printing: Supported

Electronic

• CPU: Dual XBurst®(1.2GHz) + XBurst®0(240MHz)
• Operation System: Linux
• EMMC: 8 GB
• Connection: Wi-Fi (App, AnkerMake Slicer), USB-C Flash Drive, OTA Upgrade
• Display: 4.3-inch Touch Screen
• Remote Control: AnkerMake App, AnkerMake Slicer
• Voice Assistant: Amazon Alexa (Printing Status Check)
• USB Interface: USB-C
• Power: 350W
• Power Input: AC 100-240V
• AI Recognition Camera: Detection: AI Recognition / Real-Time Monitoring: Up to 720p / Timelapse Videos: 1080p / Timelapse Videos Frame Rate: 30 fps / Night Vision: Infrared + LED

Software

• Slicer Software: AnkerMake Slicer (macOS, Windows), Simplify 3D, Ultimaker Cura, PrusaSlicer
• File Input Format: STL, OBJ
• Supported OS: macOS, Windows

Body

• Machine SizeL 502×438×470 mm (Without Filament Holder)
• Net Weight: 27.8 lb / 12.6 kg
• Gross Weight: 34.6 lb / 15.7 kg

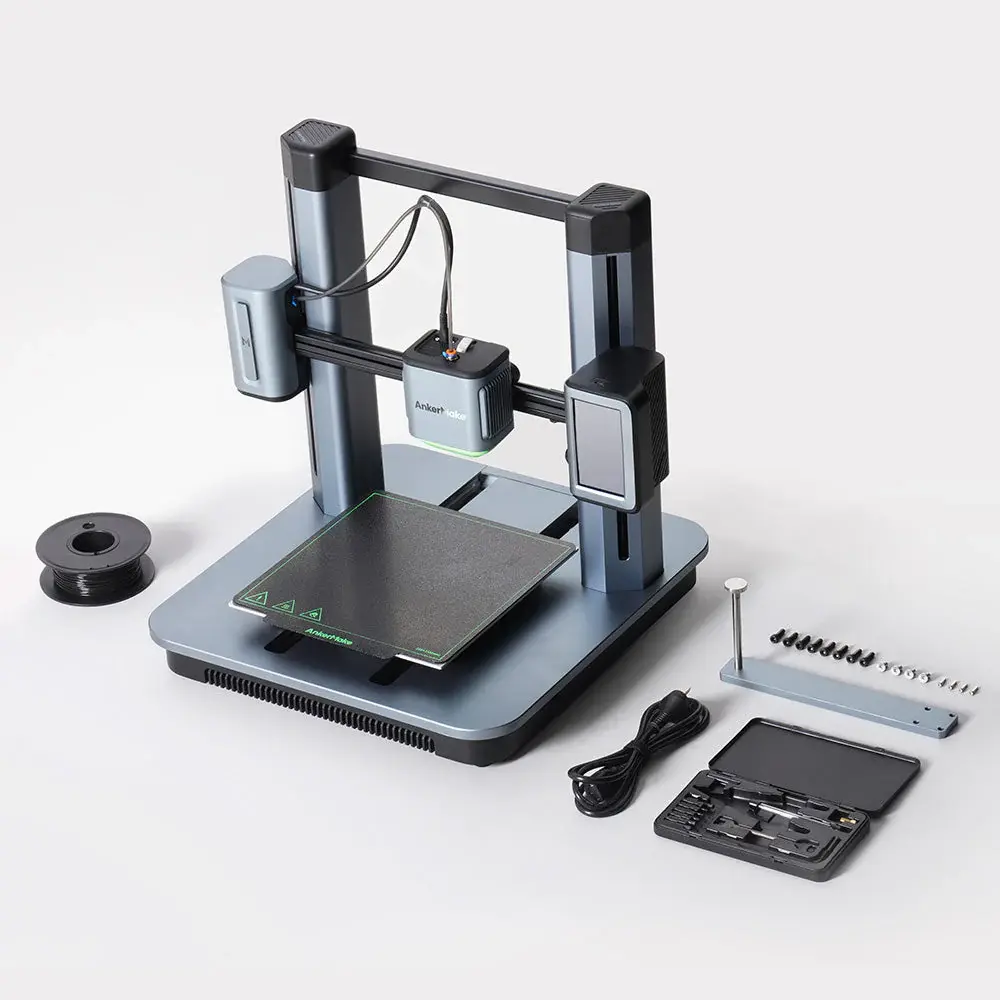

In the Box:

• M5
• Filament Holder
• Power Cord
• 150g of Filament
• Tool Box
• Screws ×19 (3 Spares)
• Quick Start Guide
